워터젯 비교 모든 Mach 시리즈 시스템을 살펴보세요.

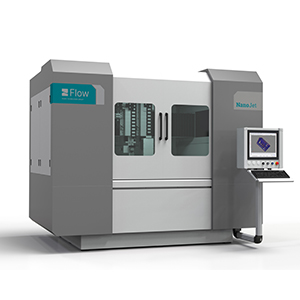

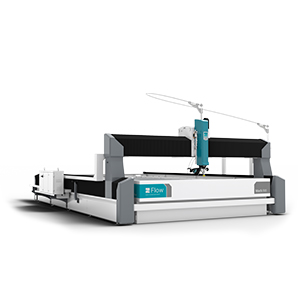

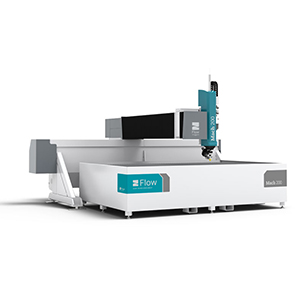

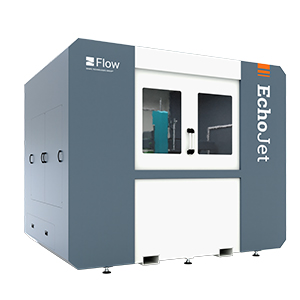

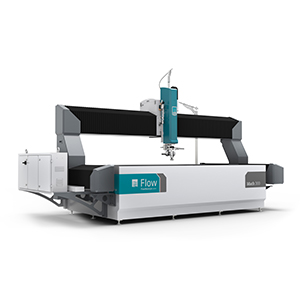

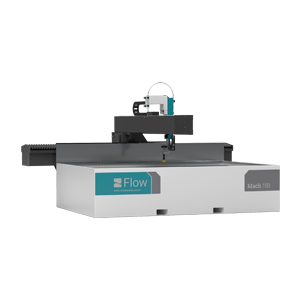

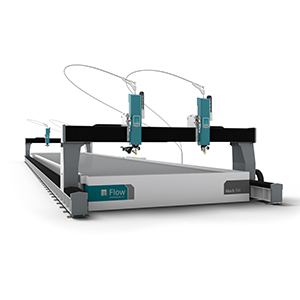

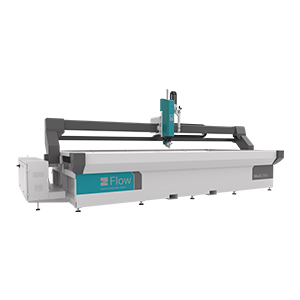

	Mach150	Mach200	Mach200c	Mach300	Mach500	Mach700	EchoJet	NanoJet
최대 급속 이송	10.16 m/min	10.16 m/min	12.7 m/min	11.9 m/min	17.8 m/min	36 m/min	12.7 m/min	up to 15,000 mm/min
직선 정밀도	± .076 mm	± .064 mm	± .064 mm	± .038 mm	± .025 mm	± 0.038 mm	± .064 mm	± 0.02 mm/0.3 m
작업 범위	1313 : 1.3 m × 1.3 m 3020 : 3.05 m × 2 m 4020 : 4 m × 2 m	1313 : 1.3 m × 1.3 m 3020 : 3.05 m × 2 m 4020 : 4 m × 2 m 7320 : 7.3 m × 2 m	1313 : 1.3 m × 1.3 m 3020 : 3.05 m × 2 m 4020 : 4 m × 2 m	2015 : 2 m × 1.5 m 3015 : 3 m × 1.5 m	2020 : 2 m × 2 m 3020 : 3.05 m × 2 m 3060 : 3.05 m × 6 m 4020 : 4 m × 2 m 4080 : 4 m × 8 m	4080 : 4 m × 8 m 40150 : 4 m × 15 m 40240 : 4 m × 24 m 5080 : 5 m × 8 m 50240 : 5 m × 24 m	1.3 m × 1.3 m	1.2 m × 0.6 m
반복 정밀도	± .064 mm	± .025 mm	± .025 mm	± 0.025 mm	± .020 mm	± 0.03 mm	± .025 mm	± 0.01 mm
커팅 헤드	Pure Waterjet Standard Abrasive Waterjet	Pure Waterjet Standard Abrasive Waterjet Pivot+ Waterjet	Pure Waterjet Standard Abrasive Waterjet Pivot+ Waterjet	Pure Waterjet Standard Abrasive Waterjet Dynamic Waterjet	Pure Waterjet Standard Abrasive Waterjet Dynamic Waterjet Dynamic Waterjet XD	Pure Waterjet Standard Abrasive Waterjet Dynamic Waterjet Dynamic Waterjet XD	Pure Waterjet Standard Abrasive Waterjet Dynamic Waterjet Dynamic Waterjet	Pure Waterjet Standard Abrasive Waterjet
Z축 이동	203 mm	203 mm	203 mm	305 mm	305 mm, 610 mm	305 mm, 610 mm	203 mm	150 mm
펌프	Hyplex Prime - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet X - 30 hp, 50 hp 60,000 psi [4,150 bar]	Hyplex Prime - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet X - 30 hp, 50 hp 60,000 psi [4,150 bar]	Hyplex Prime - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet X - 30 hp, 50 hp 60,000 psi [4,150 bar]	Hyplex Prime - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet X - 30 hp, 50 hp 60,000 psi [4,150 bar] HyperJet- 30 hp, 50 hp, 100 hp 94,000 psi [6,500 bar]	Hyplex Prime - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet - 30 hp, 50 hp 60,000 psi [4,150 bar] HyperJet - 30 hp, 50 hp, 100 hp 94,000 psi [6,500 bar]	Hyplex Prime - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet - 30 hp, 50 hp 60,000 psi [4,150 bar] HyperJet - 30 hp, 50 hp, 100 hp 94,000 psi [6,500 bar]	Hyplex Prime - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet - 30 hp, 50 hp 60,000 psi [4,150 bar] HyperJet - 30 hp, 50 hp, 100 hp 94,000 psi [6,500 bar]	Hyplex Prime - 30 hp, 50 hp 60,000 psi [4,150 bar] MotoJet - 30 hp, 50 hp 60,000 psi [4,150 bar] HyperJet - 30 hp, 50 hp, 100 hp 94,000 psi [6,500 bar]
컨트롤	Roll-Around Operator Station	Touch screen Roll-Around Operator Station	Touch screen Roll-Around Operator Station	Touch screen Roll-Around Operator Station	Touch screen Roll-Around Operator Station	Touch screen Roll-Around Operator Station	Attached Operator Station Roll-Around Operator Station	Attached Operator Station
소프트웨어 옵션	FlowXpert Infinity FlowMaster	FlowXpert Infinity FlowMaster	FlowXpert Infinity FlowMaster	FlowXpert Infinity FlowMaster	FlowXpert Infinity FlowMaster	FlowXpert Infinity FlowMaster	FlowXpert Infinity FlowMaster	Engineered to Order
